Overview:

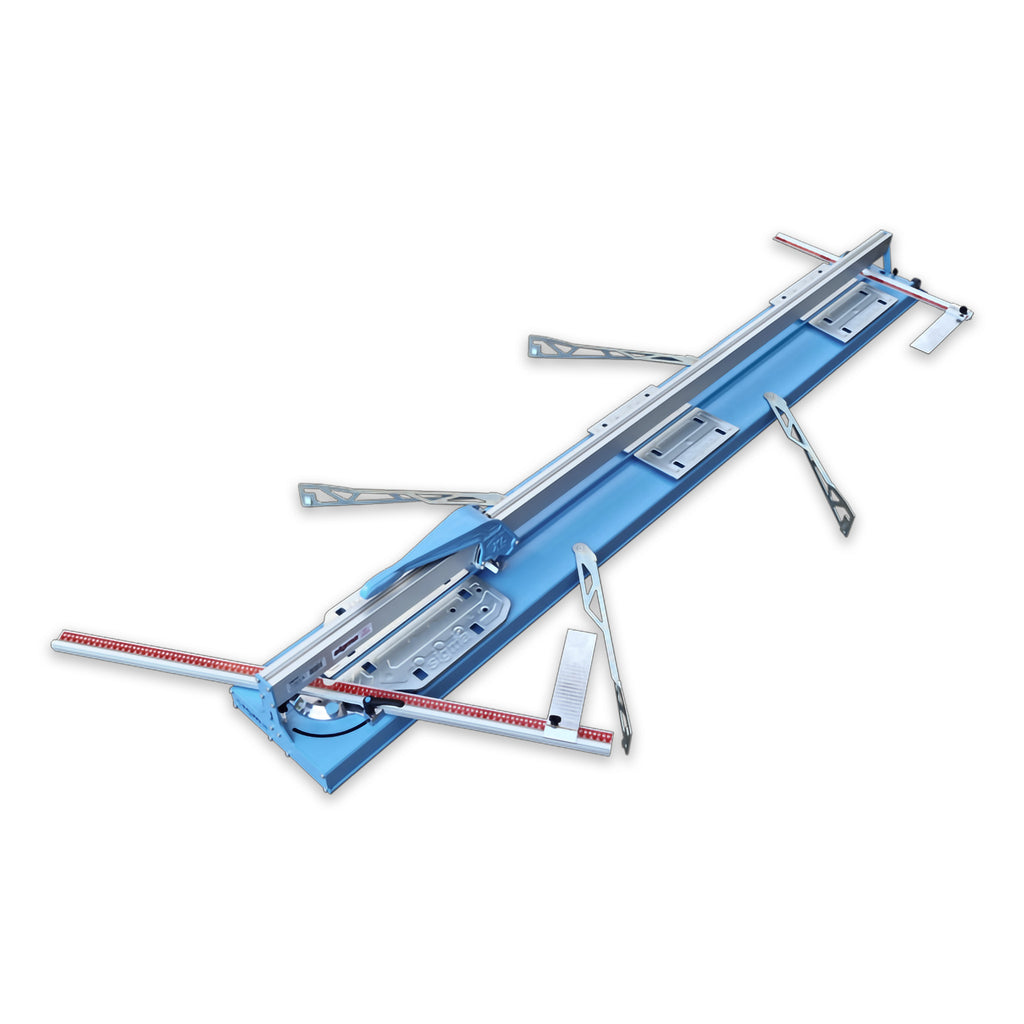

Sigma Push Manual Tile Cutter Serie XL for Large Size 96-7/16" is one of the largest tile cutters available. Able to cut large porcelain panels as well as large planks with ease. This cutter makes cutting large format tiles super easy. The breaker is the best we have ever seen in this class.
- The handle runs smoothly on its ball bearings so you can score with ease
- Fitted with easy transport wheels on one end
- 13 mm scoring wheel
- It is also very easy to carry and move about considering length of cut
- 45 Degree cutting facility
- Comes with double lateral measures for parallel cuts, the spring-loaded Scoring system and true sprung loaded base plates
- Especially suited to uneven and riven faced tiles
- Score by pushing (can pull also)
- Flip down breaker allows breaking all the way along tile length
- Rotating measure bar rotates up to 45 degrees either way
Specifications:
|
Breaking Strength
|
770 kg
|
|
Cutting Angle
|
45°
|
|
Cutting Width (in)
|
96.4
|
|
Diagonal Cut Capacity (in)
|
68
|
|
Handle Type
|
Oversized handle for extra strength - Pushing handle slides completely on ball bearings
|
|
Includes
|
Double lateral measures for parallel cuts, Spring loaded Scoring system, True sprung loaded base plates
|
|
Material
|
Aluminum Frame with Stainless Steel Guide Rail Tracks
|
|
Maximum Tile Thickness (in)
|
0.75
|
|
Quantity per Pack
|
1
|
|
Tile Cutter Scoring Wheel Specification
|
13 mm (Score by pushing, can pull also)
|
|
Used for
|
Cut large porcelain panels as well as large planks with ease
|
|
Weight (lb)
|
86
|
