Overview

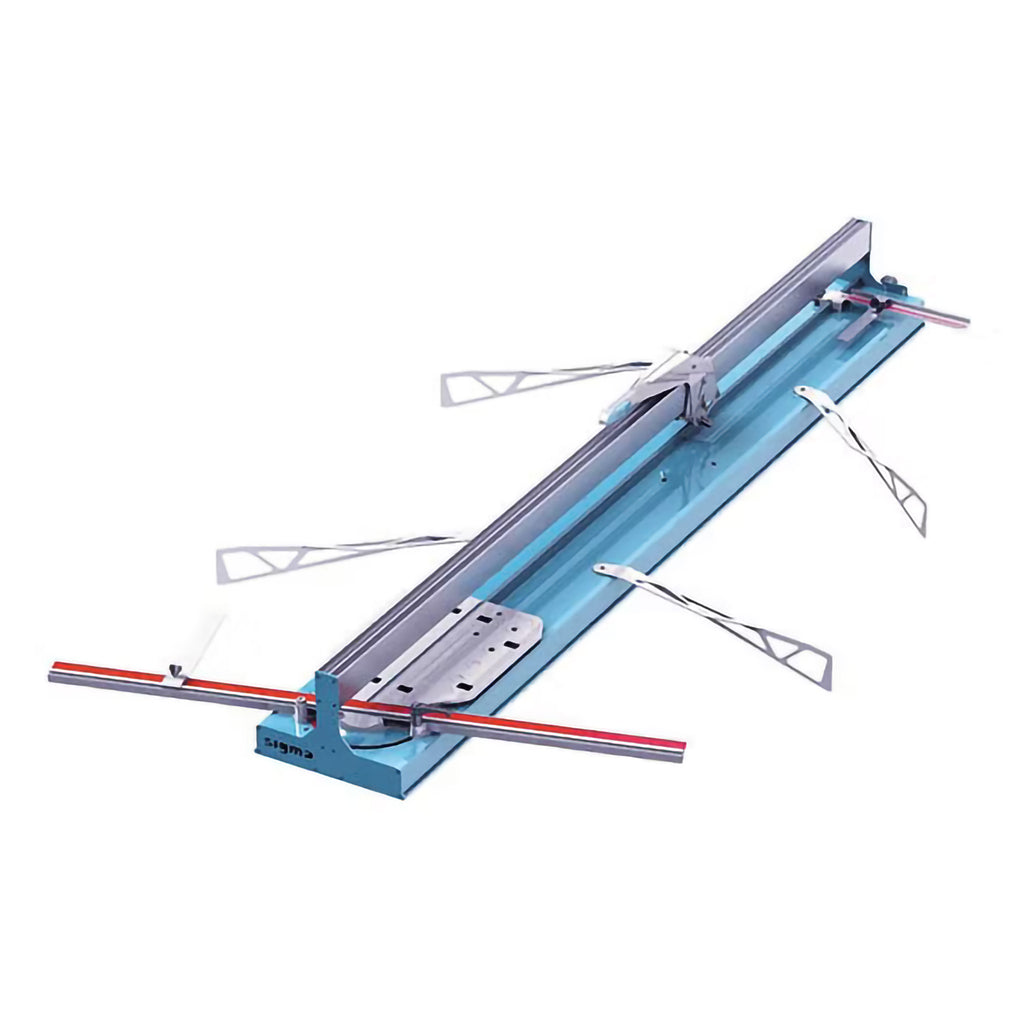

Designed for both professionals and DIY installers, the Sigma Push Manual Tile Cutter Serie XL for Large Size 81" is one of Sigma’s most advanced large-format cutters. Built with an extended base to support oversized porcelain and ceramic tiles, it delivers exceptional precision and allows clean cuts on tiles up to 19 mm thick.
Cutting is achieved by placing the tile against the swiveling measurement arm, which rotates up to 45° in either direction for accurate angled cuts. The lightweight, hardened aluminum frame with a stainless-steel guide system ensures smooth scoring. The cushioned push-handle runs on ball bearings for effortless scoring with maximum control.
- Fitted with easy-transport wheels on one end
- Precision cutting of most ceramic and porcelain tiles
- Constructed with high-grade aluminum and steel
- Tungsten steel cutting wheel, fully replaceable
- Plastic feet on breaking arm prevent tile surface damage
- Fast, clean, accurate cuts with minimal training
- True spring-loaded base plates
- Flip-down breaker allows breaking along full tile length
- Measurement bar rotates up to ±45°
Specifications
| Breaking Strength |
770 kg |
| Cutting Angle |
45° |
| Cutting Width (in) |
80.7 |
| Diagonal Cut Capacity (in) |
57 |
| Handle Type |
Push handle with cushioned scoring |
| Includes |
Double lateral measures, spring-loaded scoring system, 13 mm scoring wheel |
| Material |
Light-hardened aluminum alloy & stainless steel |
| Maximum Tile Thickness (in) |
0.75 |
| Quantity per Pack |
1 |
| Scoring Wheel Specification |
13 mm (push scoring, can pull as well) |
| Used For |
Porcelain tiles – ideal for uneven or textured surfaces |
| Weight (kg) |
36 |
