Laying porcelain tile on a concrete floor is a transformative project that combines the durability of concrete with the aesthetic appeal of porcelain. This guide provides a detailed, step-by-step process to help you achieve a professional-quality installation, whether you're renovating a kitchen, bathroom, basement, or outdoor patio. Porcelain tiles are known for their strength, water resistance, and versatility, making them an excellent choice for both indoor and outdoor applications. By following this guide, you can create a stunning, long-lasting floor that enhances your space.
1. Preparation: The Foundation of a Successful Installation
Proper preparation of the concrete subfloor is the most critical step in ensuring a durable and visually appealing tile installation. Skipping or rushing these steps can lead to issues like uneven tiles, cracking, or poor adhesion. Here’s how to prepare your concrete floor:
Check the Concrete
-
Curing Time: Ensure the concrete is fully cured, which typically takes at least 28 days for new concrete. Tiling on uncured concrete can lead to cracking or adhesion issues.
-
Structural Integrity: Inspect the concrete for cracks, weak spots, or flaking. Small cracks can be filled with a concrete patching compound, while larger issues may require professional repair.
-
Cleanliness: The surface must be free of old adhesives, paint, sealers, or grease. Use a scraper or wire brush to remove stubborn residues.
Clean the Surface
-
Sweep or vacuum the floor to remove dust, dirt, and debris.
-
Wash the concrete with a mild detergent solution if necessary, ensuring all residues are removed.
-
Allow the floor to dry completely before proceeding.
Level the Floor
-
Use a long level or straightedge to check for uneven areas. High spots may need to be ground down, while low spots can be filled with a self-leveling compound.
-
Apply the self-leveling compound according to the manufacturer’s instructions and allow it to dry fully, typically 24–48 hours.
Test for Moisture
Concrete can retain moisture, which can interfere with tile adhesion. Use a calcium chloride test kit to measure the moisture level, ensuring it’s below 80% relative humidity. If moisture levels are too high, consider installing a vapor barrier or allowing additional drying time.
2. Materials Needed
Having the right materials is essential for a successful tile installation. Here’s a comprehensive list of what you’ll need — all available at The Tile Shoppe:
| Material/Tool | Description |
|---|---|
| Porcelain Tiles | Available in various sizes (e.g., 48x48 inches), colors, and finishes at The Tile Shoppe. Choose tiles that suit your style and space requirements. |
| Modified Thinset Mortar | A cement-based adhesive with additives for enhanced flexibility and adhesion, ideal for porcelain tiles to reduce cracking risks. |
| Grout | Choose sanded grout for joints wider than 1/8 inch or unsanded grout for narrower joints. Select a color that complements your tiles. |
| Uncoupling Membrane | An optional but recommended layer that prevents cracks by allowing tiles to move independently of the concrete. |
| Notched Trowel | Used to spread thinset evenly, with notch size depending on tile size (e.g., 1/4-inch for standard tiles). |
| Tile Cutter or Wet Saw | Essential for cutting tiles to fit edges, corners, or around obstacles. |
| Spacers | Maintain consistent grout lines (typically 1/8 to 1/4 inch). |
| Grout Float | Used to apply grout evenly into tile joints. |
| Sponge and Bucket | For cleaning excess grout and removing grout haze. |
| Safety Gear | Gloves and goggles to protect against dust and chemicals. |
You can find high-quality porcelain tiles and installation materials at your local Tile Shoppe location or online at tileshoppes.com. We offer bulk discounts and a wide selection of sizes and colors to match your project.
3. Step-by-Step Tile Installation Process
With your concrete floor prepared and materials gathered, follow these steps to install your porcelain tiles:
Step 1: Install the Uncoupling Membrane (Optional but Recommended)
-
Roll out the uncoupling membrane over the prepared concrete, ensuring it lies flat.
-
Overlap seams as per the manufacturer’s instructions and secure with tape.
-
This membrane helps absorb minor movements in the concrete, reducing the risk of tile cracking, especially in areas prone to temperature changes or heavy traffic.
Step 2: Mix the Thinset Mortar
-
Follow the manufacturer’s instructions to mix the modified thinset mortar. The consistency should be creamy and spreadable, similar to peanut butter.
-
Mix only enough thinset for about 30 minutes of work to prevent it from drying out.
Step 3: Plan Your Tile Layout
-
Dry-lay your tiles on the floor to plan the layout, starting from the center of the room and working outward. This ensures balanced cuts at the edges.
-
Consider the room’s style: parallel layouts are traditional, while diagonal, herringbone, or chevron patterns offer a modern look.
-
Mark reference lines using a chalk line to guide tile placement.

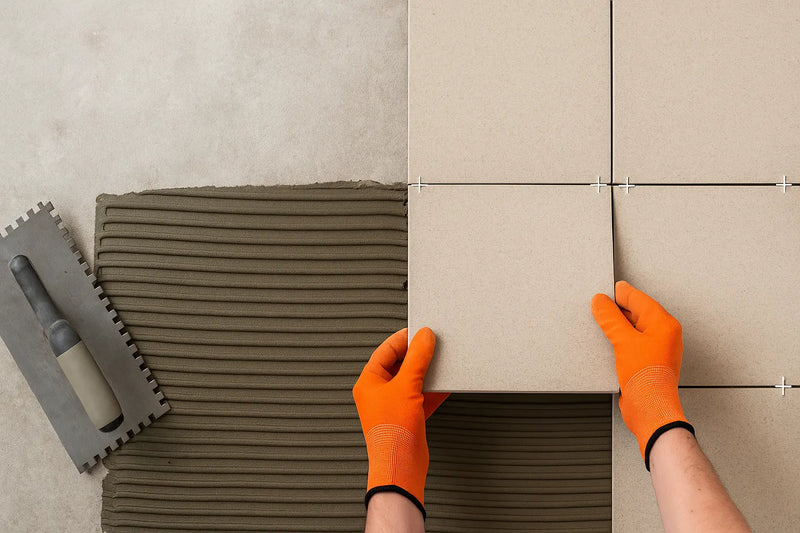

Step 4: Apply Thinset and Set Tiles
-
Using a notched trowel, spread thinset over a small area (about 3x3 feet) to maintain workability.
-
Hold the trowel at a 45-degree angle to create consistent ridges for better adhesion.
-
Place tiles into the thinset, twisting them slightly to ensure full contact. Use spacers to maintain even grout lines.
-
Press tiles firmly but gently to avoid squeezing out too much thinset.
Step 5: Cut Tiles as Needed
-
Measure and mark tiles for edges, corners, or obstacles like pipes or cabinets.
-
Use a tile cutter for straight cuts or a wet saw for precise or curved cuts.
-
Double-check measurements to minimize waste and ensure a clean fit.
Step 6: Allow Thinset to Cure
Let the thinset cure for 24–48 hours, depending on the manufacturer’s instructions. Avoid walking on the tiles during this time to prevent shifting.
Step 7: Grout the Tiles
-
Mix grout according to the package instructions, ensuring a smooth, lump-free consistency.
-
Use a rubber grout float to press grout into the joints, holding the float at a 45-degree angle.
-
Wipe away excess grout with a damp sponge, rinsing frequently to avoid smearing.
-
Allow the grout to cure for 24 hours or as specified.
Step 8: Seal the Grout (Optional)
Apply a grout sealer after the grout has fully cured (typically 48–72 hours) to protect against moisture and stains, especially in high-traffic or wet areas like bathrooms or kitchens.
4. Finishing Touches
Once the grout is set, your tile installation is nearly complete. Here are the final steps:
-
Clean the Tiles: Use a damp cloth or sponge to remove any grout haze or residue from the tile surfaces. A mild vinegar solution can help with stubborn haze.
-
Inspect the Floor: Check for any missed grout spots, uneven tiles, or imperfections. Make corrections as needed.
-
Enjoy Your New Floor: Your porcelain tile floor is now ready for use, offering durability and beauty for years to come.
5. Additional Considerations for Outdoor Installations
If you’re tiling an outdoor concrete floor, such as a patio, consider these additional factors:
-
Freeze-Thaw Resistance: Choose porcelain tiles rated for outdoor use to withstand temperature fluctuations.
-
Drainage: Ensure the concrete has a slight slope to prevent water pooling, which can damage tiles or grout.
-
Sealing: Apply a tile sealer to protect against UV rays and weathering.
6. Frequently Asked Questions (FAQs)
Can I lay porcelain tile directly on concrete?
Yes, you can lay porcelain tile directly on concrete if the surface is clean, level, and dry. However, using an uncoupling membrane is highly recommended to prevent cracking, especially for large tiles or in areas with movement, such as basements or garages.
Do I need to use an uncoupling membrane?
While not mandatory, an uncoupling membrane is strongly advised for porcelain tile installations. It allows the tiles to move independently of the concrete, reducing the risk of cracks due to minor shifts or temperature changes.
How long does thinset take to cure?
Modified thinset typically takes 24–48 hours to cure, but curing times can vary based on the product, humidity, and temperature. Always check the manufacturer’s instructions.
What type of grout should I use?
For porcelain tiles, choose a grout that matches the tile’s durability. Cement-based grout is cost-effective and widely used; use sanded grout for joints wider than 1/8 inch and unsanded for narrower joints. Epoxy grout is more durable but more expensive and harder to apply.
How do I clean and maintain porcelain tiles?
Regular sweeping and mopping with a pH-neutral cleaner will keep porcelain tiles looking pristine. Avoid abrasive cleaners or pads that can scratch the surface. For stubborn stains, use a mild detergent or vinegar solution.
7. Conclusion
Laying porcelain tile on a concrete floor is a rewarding project that can elevate the look and functionality of any space. By carefully preparing the concrete, using high-quality materials like those available at your local Tile Shoppe, and following a methodical installation process, you can achieve a professional-quality result. Whether you’re a seasoned DIYer or a first-timer, this guide provides the tools and knowledge to succeed.
Take your time, double-check measurements, and ensure proper curing times for thinset and grout. The result will be a durable, stylish floor that enhances your home for years to come. Visit your nearest showroom to explore our wide range of porcelain tiles and get expert advice from our team.
